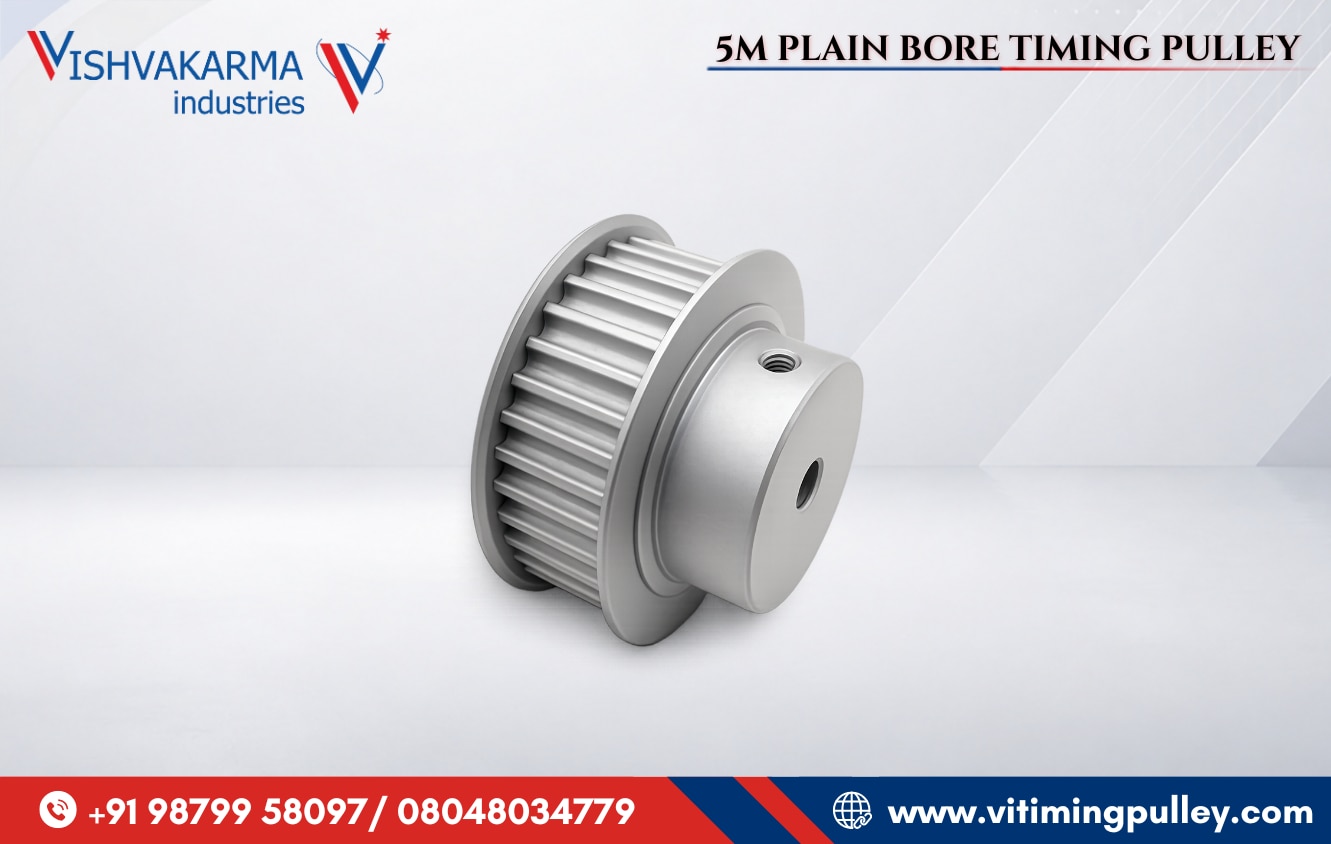

5M PLAIN BORE TIMING PULLEY

5M Plain Bore Timing Pulley Manufacturer in Ahmedabad.

Vishvakarma Industries is a trusted 5M Plain Bore Timing Pulley Manufacturer in Ahmedabad, offering precision-engineered pulleys designed for smooth, synchronized, and slip-free power transmission. As a leading supplier in Gujarat and distributor across India, we manufacture high-quality pulleys compatible with HTD 5M timing belts featuring a 5 mm pitch for accurate motion control and reliable performance. The plain bore design allows custom machining to suit specific shaft sizes, while the HTD tooth profile ensures positive belt engagement, reduced slippage, and efficient operation in demanding industrial applications.

Technical Specifications

Model 1: 20-5M-09

• Material: Steel

• Teeth: 20

• Pitch Diameter (PD): 31.83 mm

• Width (PW): 14.5 mm

• Length (L): 22.5 mm

• Min Bore: 6 mm

• Max Bore: 14 mm

• Approx. Weight: 0.10 kg

Model 2: 30-5M-15

• Material: Steel

• Teeth: 30

• Pitch Diameter (PD): 47.75 mm

• Width (PW): 20.5 mm

• Length (L): 29 mm

• Min Bore: 8 mm

• Max Bore: 24 mm

• Approx. Weight: 0.32 kg

Model 3: 48-5M-25

• Material: Steel

• Teeth: 48

• Pitch Diameter (PD): 76.39 mm

• Width (PW): 30.5 mm

• Length (L): 40 mm

• Min Bore: 8 mm

• Max Bore: 38 mm

• Approx. Weight: 1.20 kg

Key Features

• HTD 5 mm pitch profile for efficient torque transmission

• Plain bore design for custom shaft machining

• Manufactured from high-quality steel

• Designed for superior durability and extended operational lifespan.

• Smooth and vibration-free operation

• High-dimensional accuracy

• Compatible with 9 mm, 15 mm, and 25 mm belt widths

• Suitable for medium-duty and high-performance applications

Industrial Applications

The 5M Plain Bore Timing Pulley is widely used in industries that require precise motion control and dependable power transmission.

Common applications include:

• CNC machines

• 3D printing systems

• Packaging machinery

• Conveyor systems

• Robotics and automation equipment

• Textile machinery

• Material handling systems

• Motorized linear actuators

Its versatile design makes it ideal for both OEM manufacturers and maintenance replacement requirements.

Why Choose Vishvakarma Industries?

Vishvakarma Industries combines advanced manufacturing techniques with strict quality control to produce timing pulleys that deliver consistent performance. As an experienced 5M Plain Bore Timing Pulley Manufacturer in Ahmedabad, we offer a comprehensive range of pulley sizes and configurations to suit diverse industrial requirements.

Our dedication to quality, timely delivery, and customer satisfaction has established us as a reliable 5M Plain Bore Timing Pulley Supplier in Gujarat and a trusted 5M Plain Bore Timing Pulley Distributor in India.

Frequently Asked Questions

1. What is the advantage of a plain bore timing pulley?

A plain-bore timing pulley allows users to machine the bore to their exact shaft dimensions, providing greater customization and installation flexibility.

2. Which belts are compatible with a 5M timing pulley?

These pulleys are designed for HTD 5M timing belts and are commonly available for 9 mm, 15 mm, and 25 mm belt widths.

3. Where are 5M Plain Bore Timing Pulleys commonly used?

They are widely used in CNC machines, conveyors, robotics, packaging equipment, automation systems, and industrial power transmission applications.

Looking for a reliable 5M Plain Bore Timing Pulley? Contact Vishvakarma Industries for precision-engineered timing pulleys tailored to your industrial requirements.
