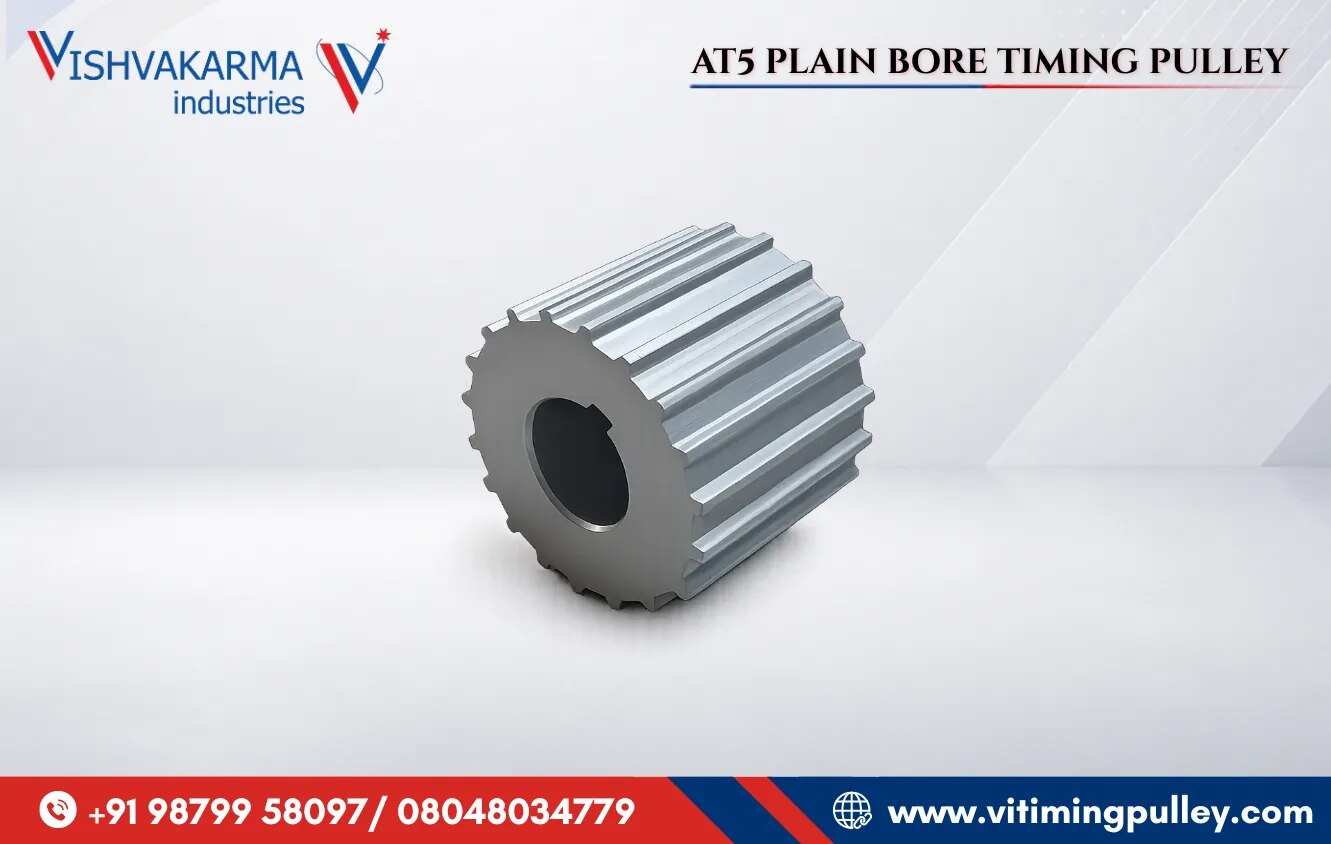

AT5 PLAIN BORE TIMING PULLEY
Description
AT5 Plain Bore Timing Pulley Manufacturer in Ahmedabad, Gujarat, India.
Vishvakarma Industries is a trusted AT5 Plain Bore Timing Pulley Manufacturer and Supplier in Ahmedabad, offering precision-engineered pulleys designed for AT5 timing belts with a 5 mm pitch. Manufactured from premium-grade aluminum, these pulleys provide high torque transmission, excellent load distribution, minimal backlash, and reliable synchronization for CNC machines, automation systems, robotics, packaging equipment, and other precision applications. The pilot bore configuration offers flexibility for customized shaft fitting, making these pulleys well-suited for bespoke machinery and precision-engineered industrial systems. With accurate tooth profiles, lightweight construction, and strict quality standards, our AT5 Plain Bore Timing Pulleys ensure smooth, efficient, and long-lasting performance.
Technical Specifications
Model 1: AT5 10W Plain Bore Timing Pulley
• Belt Width (PW): 15 mm
• Material: Aluminum
• Teeth Range: 12T to 60T
• Pitch Diameter Range: 19.01 mm to 95.52 mm
• Min Bore: 4 mm – 8 mm
• Max Bore: 5 mm – 35 mm
• Application: Compact automation and light-duty motion systems
Model 2: AT5 16W Plain Bore Timing Pulley
• Belt Width (PW): 21 mm
• Material: Aluminum
• Teeth Range: 12T to 60T
• Pitch Diameter Range: 19.01 mm to 95.52 mm
• Min Bore: 4 mm – 8 mm
• Max Bore: 6 mm – 35 mm
• Application: Medium-duty conveyors and robotic equipment
Model 3: AT5 25W Plain Bore Timing Pulley
• Belt Width (PW): 30 mm
• Material: Aluminum
• Teeth Range: 12T to 60T
• Pitch Diameter Range: 19.01 mm to 95.52 mm
• Min Bore: 4 mm – 8 mm
• Max Bore: 8 mm – 35 mm
• Application: Heavy-duty automation and power transmission systems
Key Features
• High-performance AT5 tooth profile with 5 mm pitch
• Plain bore design for customized shaft machining
• Precision-machined aluminum construction
• Excellent torque transmission capability
• Zero-slip synchronous drive performance
• Reduced backlash for accurate positioning
• Lightweight and corrosion-resistant design
• Suitable for high-speed automation systems
Common Applications
AT5 Plain Bore Timing Pulleys are widely used in:
• CNC routers and machining centers
• Robotic automation systems
• Packaging and labeling machinery
• Material handling equipment
• Conveyor drive systems
• Precision indexing mechanisms
• Custom industrial machinery
• High-speed production lines
Why Choose Vishvakarma Industries?
As a renowned AT5 Plain Bore Timing Pulley Distributor in India, Vishvakarma Industries combines advanced manufacturing technology with extensive industry expertise. Our pulleys are designed to deliver long service life, reliable performance, and precise synchronization for critical industrial operations.
Whether you require standard configurations or customized solutions, we provide timing pulleys that meet exact operational requirements while maintaining exceptional quality standards.
FAQs
1. What is the advantage of an AT5 Plain Bore Timing Pulley?
The AT5 profile provides higher torque capacity, better load distribution, and reduced backlash compared to conventional timing pulley profiles.
2. Can the bore size be customized?
Yes. The plain-bore design allows the pulley to be machined to the required shaft diameter, keyway, or set-screw arrangement.
3. Which industries commonly use AT5 timing pulleys?
AT5 timing pulleys are widely used in CNC machinery, robotics, automation systems, packaging equipment, conveyor systems, and precision manufacturing applications.
Looking for a reliable AT5 timing pulley solution? Contact Vishvakarma Industries today for premium-quality AT5 Plain Bore Timing Pulleys tailored to your application requirements.
